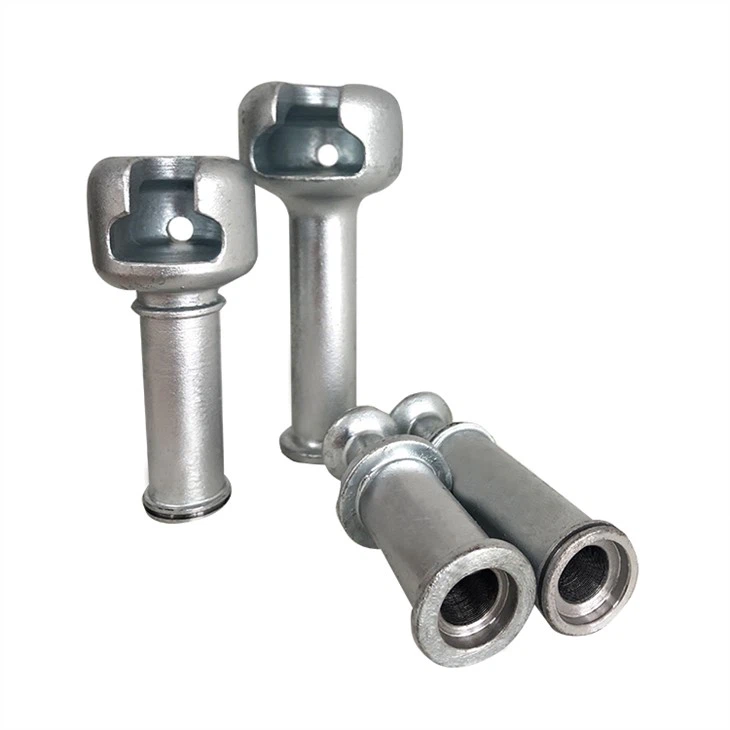

Reliable 120kN Ball and Socket Insulator Hardware for Transmission Lines
The 120kN Ball and Socket Insulator fitting set is a precision-engineered component used in high-voltage power transmission and distribution systems. These fittings provide a secure mechanical connection between insulators and transmission line hardware, ensuring long-term reliability and operational safety.
Manufactured from high-strength forged steel and protected with hot-dip galvanization, our 120kN Ball and Socket Insulator fittings are designed to withstand demanding environmental conditions and heavy mechanical loads. The robust construction offers excellent corrosion resistance, durability, and performance in overhead transmission networks.
Applications of 120kN Ball and Socket Insulator Fittings
- High-voltage transmission lines
- Power distribution networks
- Suspension insulator strings
- Tension insulator assemblies
- Electrical substations
- Utility infrastructure projects
Features of 120kN Ball and Socket Insulator Hardware
- High-strength forged steel construction
- Hot-dip galvanized finish
- Excellent corrosion resistance
- Precision dimensional accuracy
- Reliable locking mechanism
- Suitable for overhead transmission systems
- Long service life in outdoor conditions
- Designed for loads up to 120kN
The 120kN Ball and Socket Insulator assembly ensures stable mechanical coupling while allowing controlled articulation to reduce stress during wind loads, vibration, and conductor movement. These fittings are widely used by utility companies, EPC contractors, and transmission line manufacturers.
| Part | L (mm) | W (mm) | B (mm) |
|---|---|---|---|
| 120kN Ball | 140 | 45 | 28 |
| 120kN Socket | 150 | 48 | 30 |
Why Choose Jainsons Malleables
Jainsons Malleables is a trusted manufacturer of insulator metal part fittings for power transmission applications. Our products are manufactured under strict quality control processes to ensure strength, dimensional accuracy, and long-term performance. Every 120kN Ball and Socket Insulator fitting is tested to meet industry requirements and provide dependable service in critical power infrastructure projects.
